Bucket Elevator

Bucket elevators carry fertilizer granules, powders and other free-flowing bulk materials from a lower level to a higher point. They consist in a series of buckets attached to a belt or chain, which moves around pulleys or sprockets inside an enclosed casing. Each bucket picks up material as it passes the inlet, carries it upward and releases it through the discharge outlet located at the top.

Request a Quote

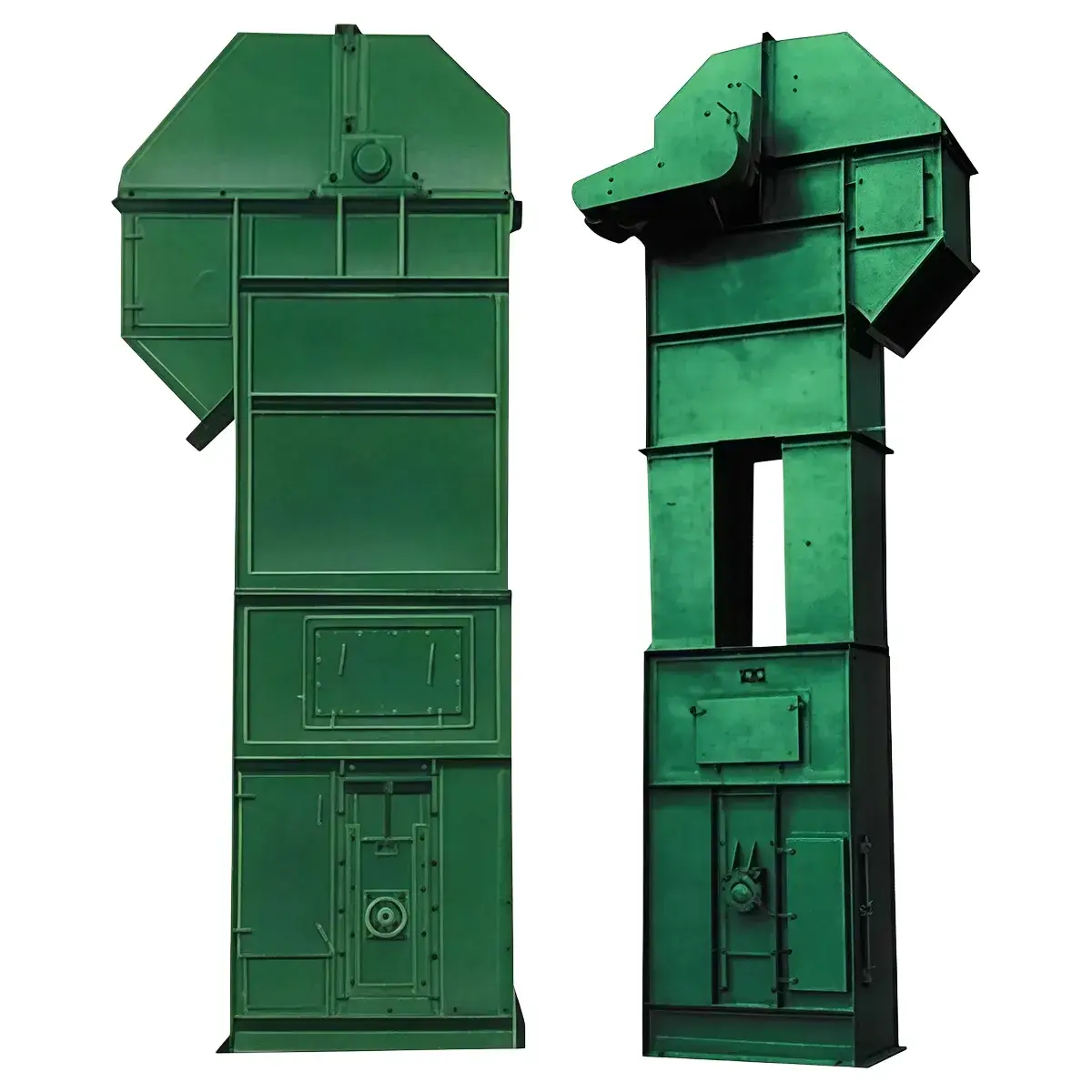

TH Bucket Elevators

TH bucket elevators are used to lift abrasive powders, granules and small pieces of bulk material, including compound fertilizer, grain, coal, cement and crushed ore. They can reach lifting heights of up to 40 m. Forged round-link chains carry the buckets through the casing, while material enters by scooping at the lower section and leaves through centrifugal or combined discharge at the top. They are suitable for handling materials at temperatures of up to 250°C.

Inquiry
Technical Specifications
Model TH160 TH250 TH315 TH400 TH500 TH630 TH800 TH1000 TH1250
Bucket Type ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH ZH SH
C[EK1] onveying Capacity (m³/h) 19 30 30 48 35 59 58 94 73 118 114 185 150 240 240 360 360 540
Bucket Bucket Capacity(L) 1.2 1.9 3 4.8 3.75 6 5.9 9.5 9.3 15 14.6 23.6 24 38 38 60 60 95
Bucket Spacing (mm) 350 450 512 688 920 920 1001
Chain Single-Link Breaking Strength (kN) Ø12x45 Ø18x64 Ø22x86 Ø26x92 Ø26x92 Ø28x92
≥170 ≥320 ≥480 ≥570 ≥570 ≥660
Conveyor Belt Speed(m/s) 1.2 1.2 1.4 1.5 1.6 1.6 1.6
Transmission Chain Wheel Rotational Speed (r/min) 62.5 46.8 42.5 37.6 35.8 31.8 30.5 24.4 28
Max. Material Lump Size (mm) 20 25 35 40 50 60 75 85 100
TDG Bucket Elevators
TDG Bucket Elevators

These bucket elevators handle large volumes of material and can lift them over greater heights while maintaining smooth operation. Their deep buckets are suitable for dry, loose and free-flowing powders, granules and small lumps, including fertilizer, grain and other bulk materials.

Inquiry
Features
  • The elevator belt has a steel-cord core, which gives it the strength and flexibility needed for long-term operation.
  • Sealed head, boot and casing sections keep fertilizer and dust inside the elevator instead of allowing them to escape into the surrounding area.
  • The drive unit has a vertical-shaft gearbox with either a pin coupling or hydraulic coupling, while the backstop prevents reverse movement during shutdown and protects the motor, gearbox and belt from sudden loads.
  • The counterweight tensioning device at the lower section automatically keeps the elevator belt at the correct tension during operation.
  • Optional level and speed sensors can send operating data to the central control room, where staff can monitor the elevator from the control computer.
Technical Specifications
Type TDG160 TDG200 TDG250 TDG315 TDG400 TDG500 TDG630 TDG800 TDG1000 TDG1250 TDG1600
Bucket Type sh zh sh zh sh zh sh zh sh zh sh zh sh zh sh zh sh zh sh zh sh zh
Conveying Capacity (m³/h) 32 24 45 31 72 51 101 74 158 118 220 167 348 253 492 361 788 571 1122 816 1541 1112
Bucket Bucket Capacity (L) 2.6 1.9 4.1 2.9 6.5 4.6 10 7.4 16 12 25 19 40 29 64 47 102 74 161 117 255 184
Bucket Spacing (mm) 260 300 325 360 420 460 520 580 650 720 820
Weight of Belt and Buckets per Metre (kg/m) 22 21.5 33 33.2 42.2 62.3 78.53 106 145 155.5 223
Conveyor Belt Operating Speed (m/s) 1.2 1.2 1.34 1.34 1.5 1.5 1.68 1.68 1.86 1.86 1.86
Max. Lifting Height (m) 80 80 80 80 80 80 80 80 80 80 80
